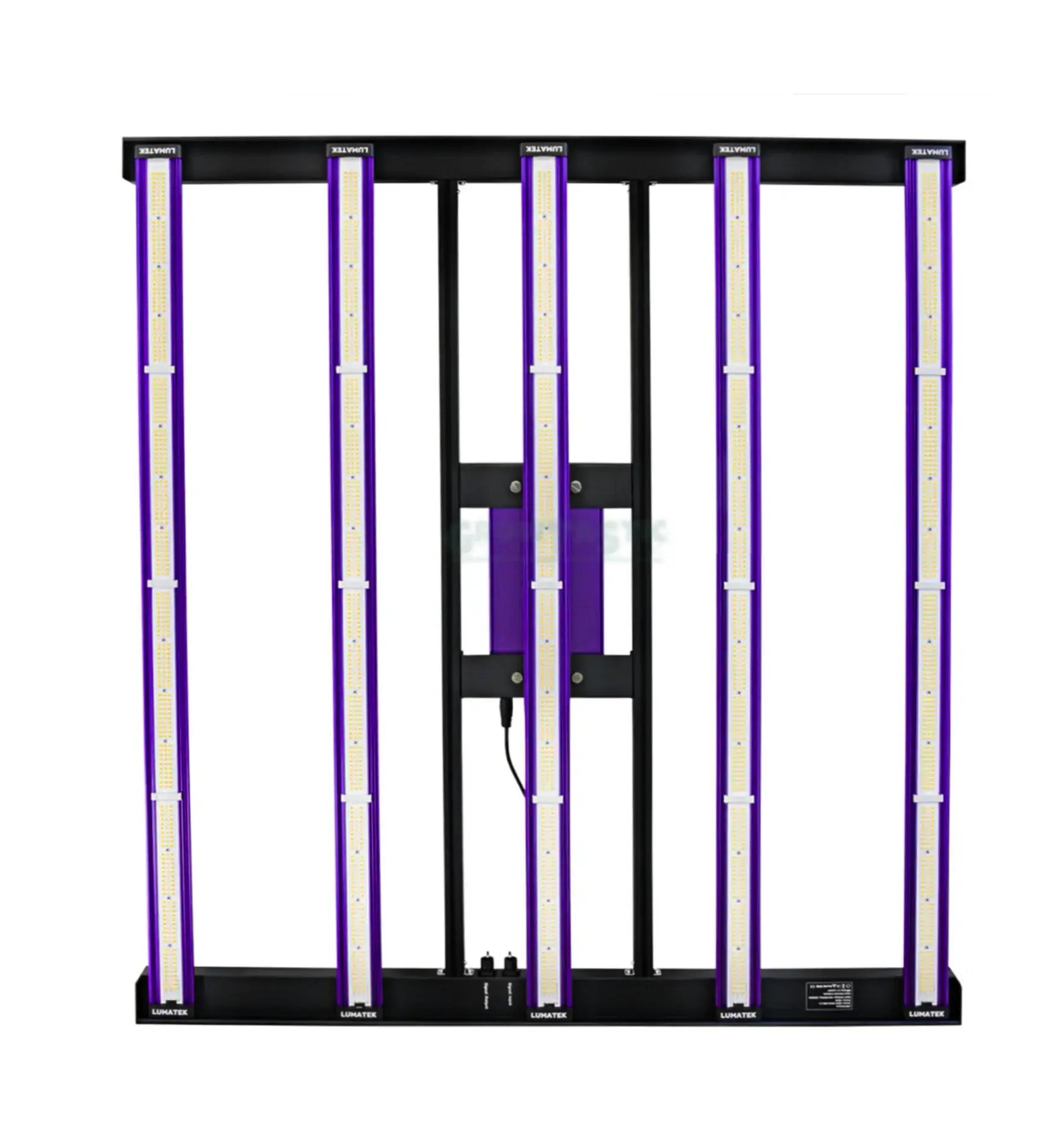

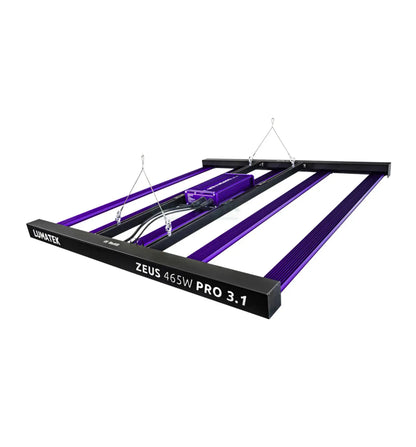

Lumatek Zeus 465W Pro 3.1

Lumatek Zeus 465W 3.1 Produktdatenblatt

Product code: LUMLED031
Efficiency: 3.1 µmol/J
PPF: 1450 µmol/s
Power consumption: 475 W (±5%)
Input voltage: 220–240 V, 50–60 Hz
Footprint: 1.2 × 1.2 m
Protection class: IP65
Beam angle: 120°
Cooling: Passive
Weight: 10 kg
Dimensions: 998 × 900 × 82 mm
Spectrum: Full Spectrum F
Dimmable: 0–10 V dimmer (included)
Controller Support: Lumatek / Universal 0-10V
Certifications: CE, EMC, LVD, TISI, RCM, L90
BTU values:
– Driver Attached: 1689 BTU/hr
– Driver Remote: 1571 BTU/h

Lumatek Zeus 465W 3.1 Bedienungsanleitung

5 × Lumatek 93W Pro 3.1 full-spectrum magnetic light bars
1 × LED Fixture Structure
1 × Lumatek 465W PRO 3.1 driver incl. connection cable
1 × 0–10 V dimmer + Velcro fastening
2 × metal suspension cables
1 × Instruction manual

CONTROL SYSTEMS
This Lumatek LED light can also be controlled externally with a digital Lumatek controller (Digital Panel Plus 2.0), which offers light timer, automatic dimming (in 1% increments), temperature safety control and sunrise & sunset mode for up to 100 devices per controller.

Compatibility with universal control systems
Lumatek LED lights can be fully controlled with the Digital Panel Plus 2.0 or any other control system that uses a 0-10V output signal. Even if your universal controller has an RJ interface, you can operate our LEDs with an RJ-to-0-10V signal adapter.
